WPI Cables & Connectors | NAC Semi
Product families
View all 15 family images
Images represent product families; appearance may vary by option.
Compare products
Search across the table or filter individual specifications. Scroll sideways for additional columns.
| Web Images | Datasheet | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| WPANT50007-SA4 | View image ↗ | WPANT50007 | 1.13mm OD micro-coax | 4 inches (101mm) | — | RP SMA female | IPX MHF | 50Ω | PDF ↗ |
| WPANT50025-S1B | View image ↗ | WPANT50025 | — | — | — | — | — | — | PDF ↗ |

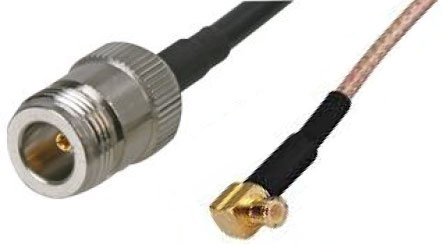

| WPANT50030-S2A | View image ↗ | WPANT50030 | RG316 | — | — | Type N female | RA MCX male | — | PDF ↗ |
| WPANT50034-S1A | View image ↗ | WPANT50034 | — | — | — | Type N male | SMA female | 50Ω | PDF ↗ |
| WPANT50035-S1A | View image ↗ | WPANT50035 | — | — | — | Type N female | SMA female | 50Ω | PDF ↗ |
| WPANT50036-S1A | View image ↗ | WPANT50036 | — | — | — | Type N male | Type N female | 50Ω | PDF ↗ |
| WPANT50037-S1A | Not supplied | WPANT50037 | — | — | — | Type N male | Type N male Connector 3: Type N female | 50Ω | PDF ↗ |
| WPANT50038-S1A | View image ↗ | WPANT50038 | — | — | — | Type N male | FME male | 50Ω | PDF ↗ |
| WPANT50039-C1A | View image ↗ | WPANT50039 | — | — | — | MCX Jack | RA MMCX plug or IPX MHF | 50Ω | PDF ↗ |
| WPANT50039-C2A | View image ↗ | WPANT50039 | — | — | — | MCX Jack | RA MMCX plug or IPX MHF | 50Ω | PDF ↗ |

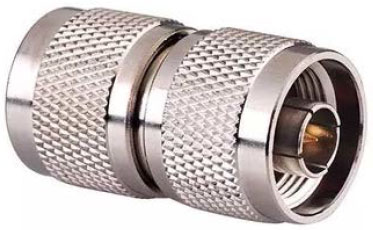

| WPANT50040-S1A | View image ↗ | WPANT50040 | — | — | — | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50041-S1A | View image ↗ | WPANT50041 | — | — | — | Type N female | Type N female | 50Ω | PDF ↗ |

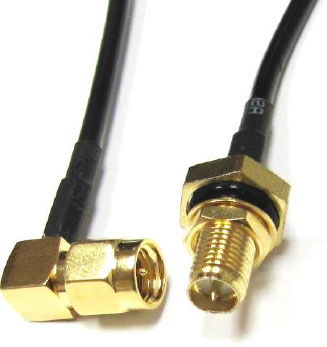

| WPANT50117-S1A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50117-S2A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50117-S3A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50117-S4A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50117-S5A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50117-S6A | View image ↗ | WPANT50117 | LMR100 | — | — | RA SMA male | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50206-S1A | View image ↗ | WPANT50206 | LMR200 | - see above- | 5 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50206-S2A | View image ↗ | WPANT50206 | LMR200 | - see above- | 10 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50206-S3A | View image ↗ | WPANT50206 | LMR200 | - see above- | 25 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50206-S4A | View image ↗ | WPANT50206 | LMR200 | - see above- | 50 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50206-S5A | View image ↗ | WPANT50206 | LMR200 | - see above- | 75 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50206-S6A | View image ↗ | WPANT50206 | LMR200 | - see above- | 100 | Type N male | Type N male | 50Ω | PDF ↗ |

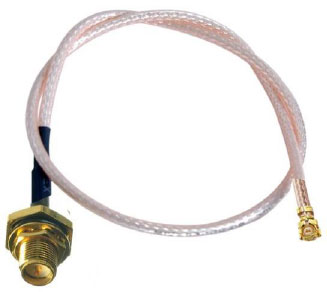

| WPANT50310-S1A | View image ↗ | WPANT50310 | RG178 | — | — | U.FL/IPX | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50310-S2A | View image ↗ | WPANT50310 | RG178 | — | — | U.FL/IPX | RP SMA female BK HD | 50Ω | PDF ↗ |
| WPANT50310-S3A | View image ↗ | WPANT50310 | RG178 | — | — | U.FL/IPX | RP SMA female BK HD | 50Ω | PDF ↗ |

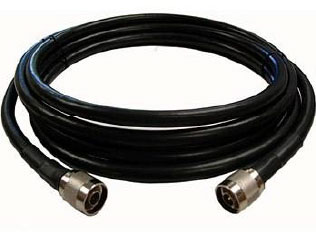

| WPANT50603-S1A | View image ↗ | WPANT50603 | LMR400 | - see above- | 5 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50603-S2A | View image ↗ | WPANT50603 | LMR400 | - see above- | 10 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50603-S3A | View image ↗ | WPANT50603 | LMR400 | - see above- | 25 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50603-S4A | View image ↗ | WPANT50603 | LMR400 | - see above- | 50 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50603-S5A | View image ↗ | WPANT50603 | LMR400 | - see above- | 75 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50603-S6A | View image ↗ | WPANT50603 | LMR400 | - see above- | 100 | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50710-S1A | View image ↗ | WPANT50710 | RG316 | - see above- | — | Type N male | Type N male | 50Ω | PDF ↗ |
| WPANT50710-S2A | View image ↗ | WPANT50710 | RG316 | - see above- | — | Type N male | Type N male | 50Ω | PDF ↗ |
No products match these filters. Try a shorter search or reset the filters.
— indicates a value not provided in the source table. Test conditions and units are included in the column headings. Open Product notes where shown for qualifications. Ordering templates and base identifiers require configuration before ordering.
